Our 3D services
Our team is made up of highly qualified and motivated professionals. Thanks to our many years of experience in the automotive industry, we are able to provide you with a complete, quality service.

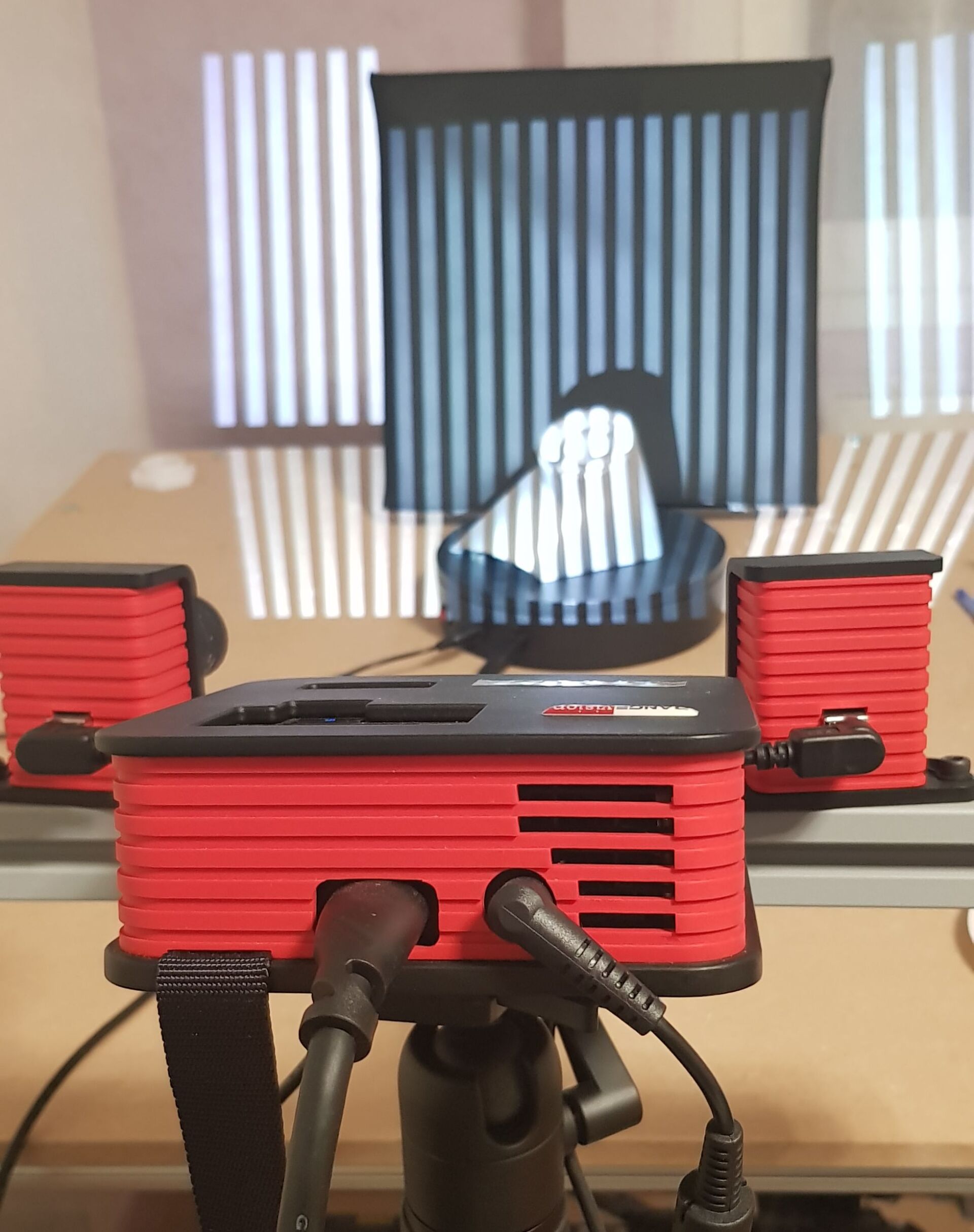

3d scanning & 3D modeling
The first step of the process consists of scanning your part to build a 3D model.
25 minutes are enough to obtain a 3D model conforming to the original. This model can be modified and improved using our CAD software. The created file is saved in our database.
Free

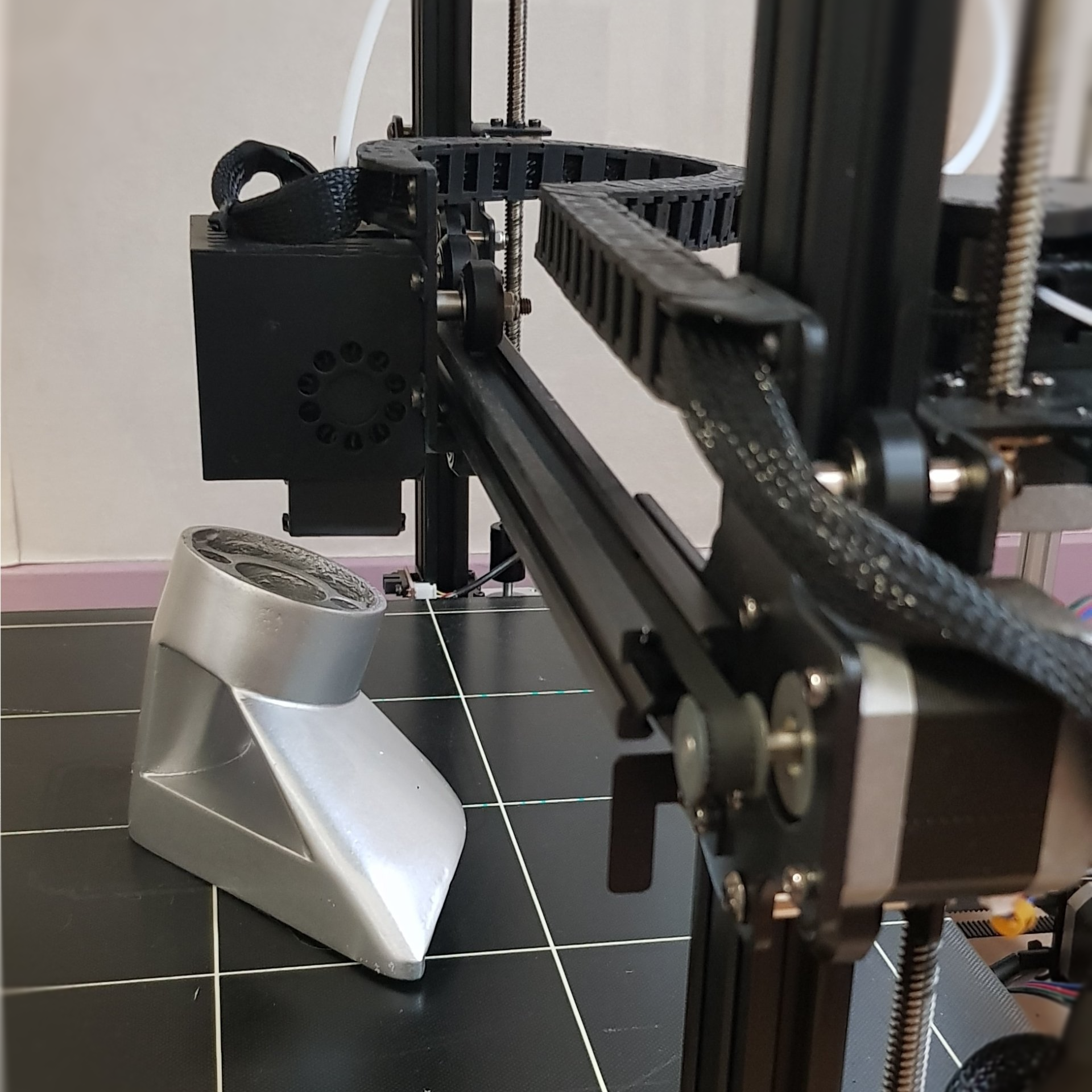

Impression 3D
In the second stage, 4 technical choices must be validated:
- The type of plastic
- Printing density = part density = weight
- The quality of the faces of the part. (face to be painted, contact face, etc.)
-The addition of threaded inserts
After validation of these choices, start printing
Quality control (appearance, dimensions)
This third step consists of checking dimensional conformity and print quality. It is also possible to go through a prototype stage to check the integration of the part into its functional environment, temperature resistance or mechanical resistance. Threaded inserts are added.
Free
Finishes

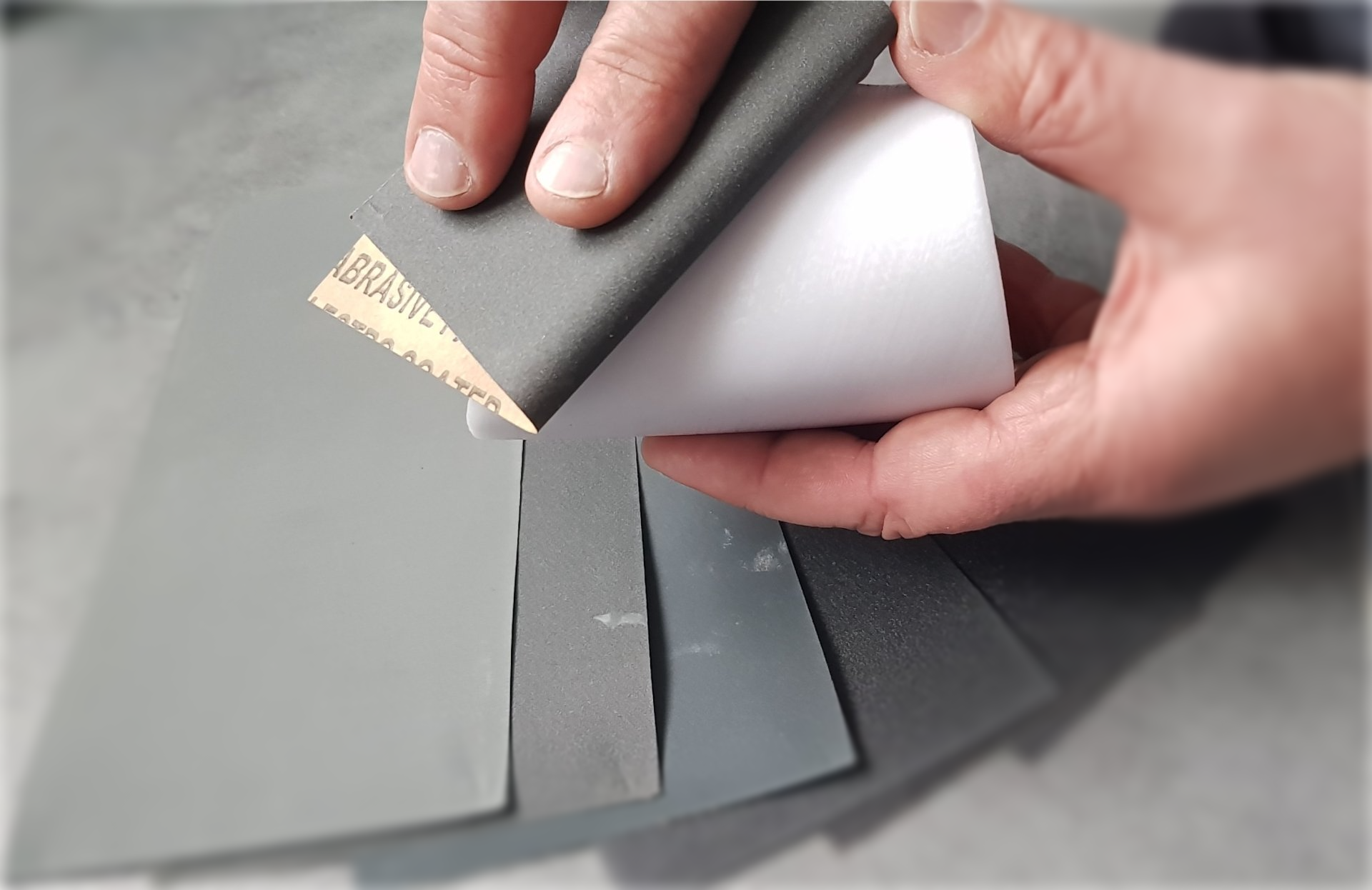

In the 3D printing process, supports are created. These supports must be removed and the part manually sanded from 120 to 3000 grit, depending on the desired aesthetic appearance.
Preparation before painting
Last step: Application of a primer coat compatible with the chosen material
The numbers to remember
40 Microns
Scanning accuracy
10 mm 3 meters away
Minimum-maxi dimensions of the object to be scanned
400 × 400 × 450 mm
3D printing volume
12 hours
Printing time for a part with dimensions mm: 130 x 190 x 100
Find out more about our achievements
Description in pictures of a service of scanning, printing, priming, painting of a rear-view mirror support for
Opel Speedster
